DMT10H072LFDFQ-7

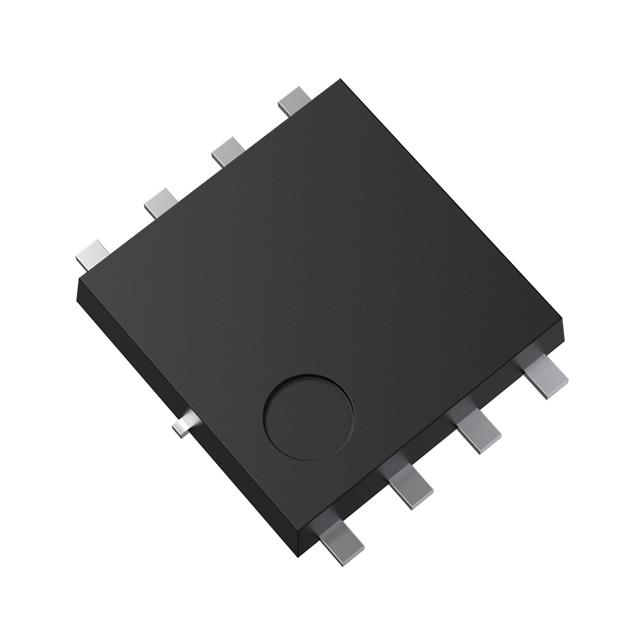

The pictures are for reference only
DMT10H072LFDFQ-7
Brand：Diodes
Model：DMT10H072LFDFQ-7
stock：68273
Store：ShenZhen/Hongkong
Price：1+
$0.13
The market price fluctuates. Please consult the customer service for the actual price
Contact Us
WhatsApp：+86 19166251823
Email：online3@ssf-asia.com
Wechat：+86 19166251823
Team：online1@ssf-asia.com
Similar Product
product details
Common problem
Industry trends
| Installation type | Surface mount |
| packing | TR,CT |
| series | Automotive, AEC-Q101 |
| Part status | On sale |
| working temperature | -55°C ~ 150°C(TJ) |
| Encapsulation/Housing | U-DFN2020-6(F class ) |
| Country of origin | USA |
| Warehouse | China/Hong Kong |
| quality | Original genuine |
| technology | MOSFET(Metal oxide) |
| FET Type | N channels |
| Drain source voltage (Vdss) | 100 V |
| Current at 25 ° C - continuous drain (Id) | 4A(Ta) |
| Drive voltage (maximum RdsOn, minimum RdsOn) | 4.5V,10V |
| On resistance (maximum) for different Ids and Vgs | 62 mΩ @ 4.5A,10V |
| Vgs (th) (maximum) for different Ids | 3V @ 250µA |
| Gate charge (Qg) at different Vgs (maximum) | 4.5 nC @ 10 V |
| Vgs (max) | ±20V |
| Input capacitance at different Vds (Ciss) (maximum) | 228 pF @ 50 V |
| Power dissipation (maximum) | 1.8W(Ta) |
